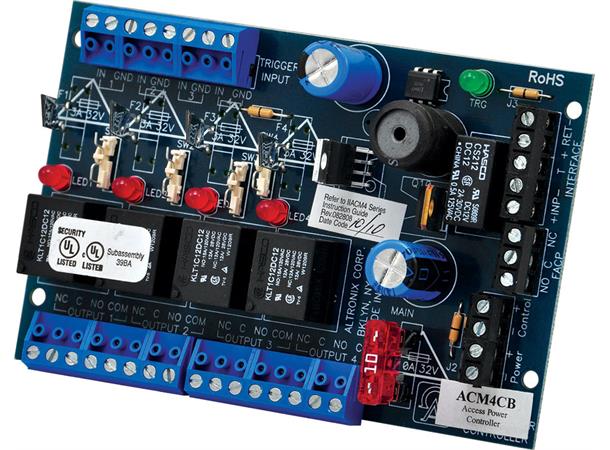

4-kanals utgangskrets 12/24VDC

PTC-beskyttede, brannoverstyring av utg.

Varenr: ACM4CB
4-kanals utgangskrets 12/24VDC PTC-beskyttede, brannoverstyring av utg.
  • Input
    • 12 to 24 volt AC or DC operation (setting not required), (0.4A @ 12volt, 0.2A @ 24 volt current consumption with all relays energized).
    • Main fuse is rated at 10A.
      • Power supply input options:
        • a) One (1) common power input (board and lock power).
        • b) Two (2) isolated power inputs (one (1) for board power and one (1) for lock/accessory power).
      • Four (4) Access Control System trigger inputs:
        • a) Four (4) normally open (NO) inputs.
        • b) Four (4) open collector sink inputs.
        • c) Any combination of the above.
  • Output
    • Four (4) independently controlled Class 2 Rated PTC protected power-limited auto-resettable 2A outputs:
    • a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
    • b) Four (4) dry form "C" 5A rated relay outputs
      • Output ratings:
        • PTCs are rated 2A each.
    • Note: Total output current is determined by the power supply, not to exceed a maximum of 10A total.
  • Features
    • Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the four (4) outputs.
      • Fire Alarm disconnect input options:
        • a) Normally open (NO) or normally closed (NC) dry contact input.
        • b) Polarity reversal input from FACP signaling circuit.
    • FACP output relay (form "C" contact rated @ 1A 28VDC not evaluated by UL).
    • Removable terminal blocks facilitate ease of installation.
  • Visual Indicators
    • Red LEDs indicate outputs are triggered (relays energized).
    • Green LED indicates FACP disconnect is triggered.
  • Temperature
    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
      • BTU/Hr (approx.):
        • 12VDC or 12VAC: 2 BTU/Hr.
        • 24VDC or 24VAC: 3 BTU/Hr.
