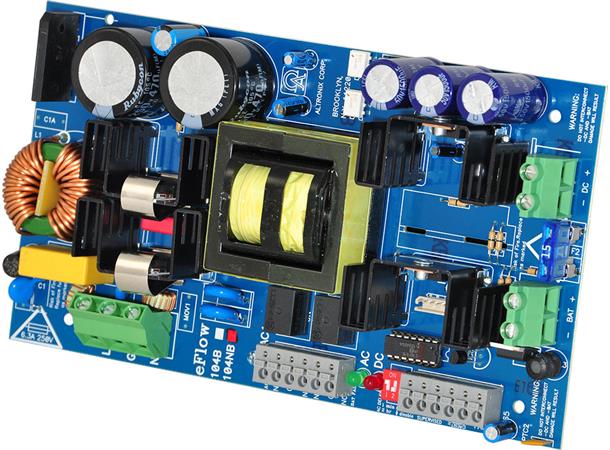

PSU 24VDC@10A, inng. 230VAC

med ladekrets for backupbatteri

Varenr: eFlow104NBV
PSU 24VDC@10A, inng. 230VAC med ladekrets for backupbatteri
  • Input Rating
    • Input 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.7A.
  • Output
    • 24VDC output.
    • 10A continuous supply current.
    • Aux. output rated @ 1A (unswitched).
    • Overvoltage protection.
    • Filtered and electronically regulated outputs.
  • Battery Backup
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption.
  • Fire Alarm Disconnect
    • Supervised Fire Alarm disconnect (latching or nonlatching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
    • Battery fail and presence supervision (form "C" contacts).
    • Low power shutdown. Shuts down DC output terminals if battery voltage drops below 80% of nominal. Prevents deep battery discharge.
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
    • BTU/Hr (approx.): 123 BTU/Hr.
    • System AC input VA requirement: 594VA.
  • Visual Indicators
    • Green AC Power LED indicates 220VAC present.
    • AC input and DC output LED indicators.
  • Additional Features
    • Short circuit and overload protection.
