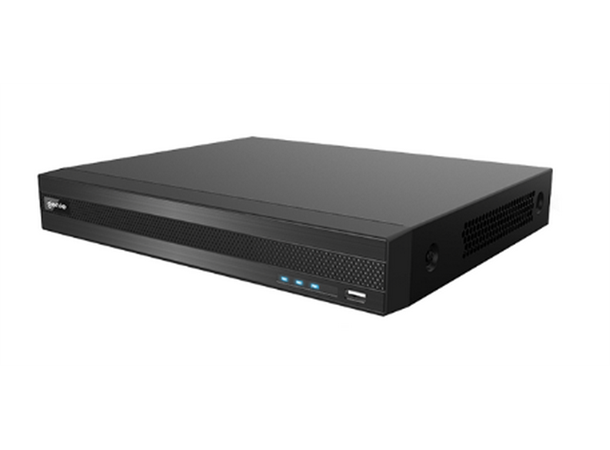

8CH Hybrid DVR, AHD/Analogue/IP

Varenr: WAHDN281A

The WAHD21 DVR’s are a series of 5 in 1 DVR’s compatible with AHD, TVI, CVI, CVBS and IP cameras and are available in 4, 8 and 16 channel formats. They have the ability to connect to analogue and IP cameras simultaneously and encode the video streams using the new H.265 high profile compression format which gives longer recording times compared to H.264 encoding. Real time recording is achievable up to 1080P video. These units will also support resolution up to 5MP in AHD, TVI and IP. The DVR’s also have Android and iPhone P2P phone support as well as supporting 1 channel audio input and 4, 8 and 16 channel simultaneous playback. A highly versatile cost effective solution suitable for many CCTV applications.

4, 8 and 16 channel TVI and AHD video input with 5MP, 4MP, 3MP, 1080P, 720P and WD1 support

4, 8 and 16 channel CVI video input with 4MP, 3MP, 1080P, 960P, 720P and WD1 support

4, 8 and 16 channel DVR support 2, 4 and 8 channel IPC 5MP, 4MP, 3MP, 1080P, 960P and 720P

Adopts standard H.265 high profile compression format to get high quality video at much lower bit rate Intuitive and user friendly graphics user interface (GUI), window style operation by mouse

Multi mode recording: Manual / Timer / Motion

Playback : 4, 8 and 16 channel simultaneous playback

Search: Time slice, Time, Event (Manual, Motion), Tag search

Express and flexible backup via USB, network etc.

Pentaplex : Preview, Record, Playback, Backup and Remote access

DHCP, DDNS, PPPoE network protocol, IE browser and CMS supported

Immix platform is supported – running firmware 1.1.0 or later

Remote control via Web or CMS : Preview, Playback, Backup, PTZ and Configuration

Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device

Multi user online simultaneously

Authorisation management, log review and device status review

Support 1080P output, true high resolution display

Support PTZ preset and auto cruise, up to 255 presets and 8 cruises

Support NAT function and QR code scanning by mobile phone and iPad

Powerful smart phone & iPad surveillance with iOS and Android OS


Produsent Genie
Type Standalone
