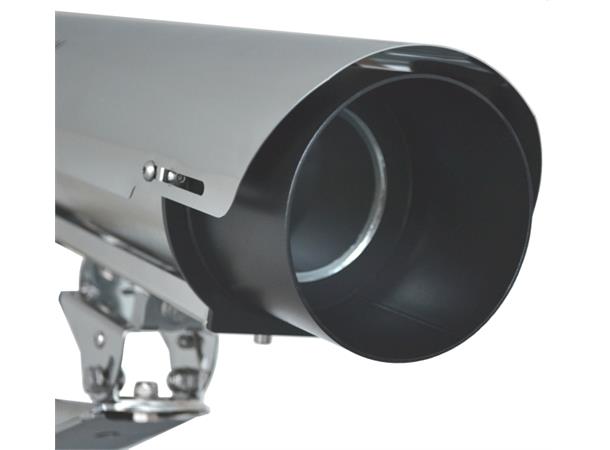

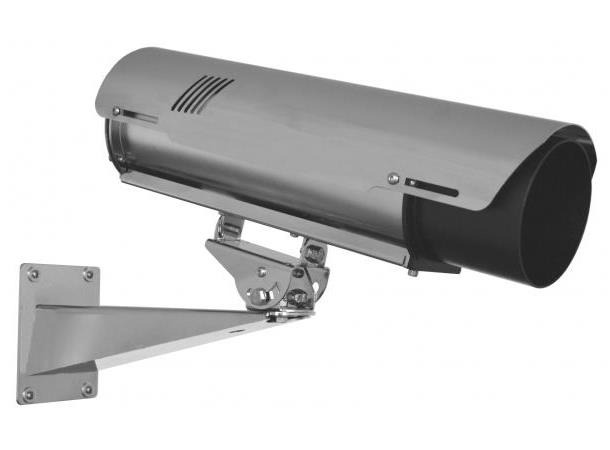

The CSX815T POE is a cylindrical weatherproof housing, entirely made of AISI 316L stainless steel. The electropolishing treatment increases the corrosion resistance and makes the housing particularly indicated for installations in marine, industrial and chemical environments.
The front cover is supplied with the exclusive “Clean Glass” system, that keeps the front glass always free of any dust deposit. CSX815T POE is especially indicated for installations inside tunnels, where this problem is more prevalent.
It is supplied with a special joint, realized by Global Proof with an exclusive system that allows the third axis tilt: in this way it is possible to mount the housing also in an arched ceiling or on a wall that is not perpendicular to the ground.
The lightweight of this housing allows to mount it also on small pan-tilt systems.
Technical data:
- AISI 316L stainless steel body.
- AISI 316L stainless steel sunshield with wide range of adjustments.
- A4 Stainless steel bolts and screws.
- Stainless steel AISI 316L wall bracket.
- Joint with exclusive third axis tilt.
- Slide opening system.
- "Clean glass" system, that keeps the front glass always free of any dust deposit.
- Thermostatically controlled heater.
- Powered PoE/PoE+ (802.3af-802.3at compliant)
- Wide range of accessories.
- Supplied with instruction manual.
- Usable internal space: 78x77 mm (BxH) or Ø 95.
- Usable length: 280 mm.
- Glass window: Ø 75 mm.
- Weatherproof rating: IP67.
- Indoor/outdoor installations.
- Operating temperature with heater: from -20°C to +60°C.
- Weight: 7 Kg (KIT version with wall bracket).
