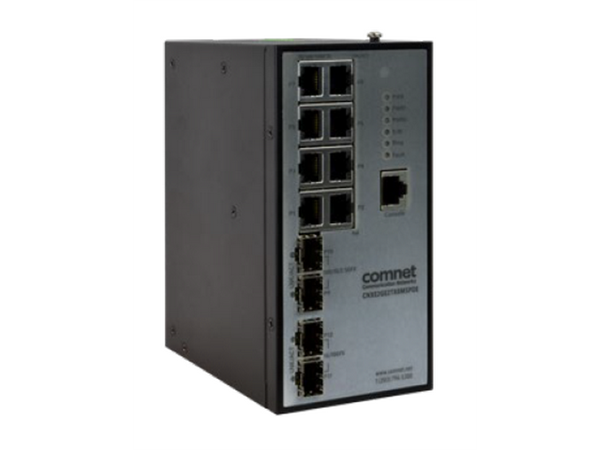

The ComNet CNXE2GE2TX8MSPOE is a twelve-port Managed Ethernet Switch

designed to reliably operate in harsh, environmentally challenging applications.

It features eight 10/100/1000BASE-TX ports supporting IEEE 802.2af/at PSE with a

total power budget of 240 watts with a maximum of thirty watts per port to provide

power in a PoE application. It also provides two 100/1G/2.5GBASE-X ports and

two 1G/10GBASE-X SFP+ ports. The SFP ports are configurable by the use of

compatible ComNet SFP+ modules. These network-managed layer 2 switches are

compatible with any IEEE802.3 compliant Ethernet device.

 FEATURES

›› High Speed 12-port Managed PoE Ethernet Switch: - 8 × 10/100/1000BASE-TX PoE ports with total power budget of 240W (max 30 W per port) - 2 × 100/1G/2.5GBASE-X ports - 2 × 1G/10GBASE-X SFP+ ports

›› Supports MSTP(RSTP/STP compatible) Redundancy

›› IEEE 802.3af/at compliant, up to 30 W of PoE+ power available per port. 240 W total PoE power available.

›› Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/ lowline voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.

›› Fast Redundant Ethernet Ring: C-Ring. Recovery time 250 switches within the ring

››Supports IEEE 1588v2 clock synchronization

››Supports IPV6 new internet protocol version

››Supports Modbus TCP protocol

››Supports IEEE 802.3az Energy-Efficient Ethernet technology

››Provided HTTPS/SSH protocol to enhance network security

››Supports SMTP client and NTP server protocol

››Supports IP-based bandwidth management ››Supports application-based QoS management

››Supports Device Binding security function

››Supports DOS/DDOS auto prevention

›› IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic

›› Supports SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management

›› Supports ACL, TACACS+, RADIUS and 802.1X User Authentication for security

››Supports 10K Bytes Jumbo Frame ›› Syslog/SNMP Trap notification for warning of unexpected event

››Supports UPnP(Universal Plug ad Play Protocol)

›› Windows utility, eConsole, supports centralized management, and is web-based configurable, or by Telnet and console (CLI) ports

›› Rigid aluminum housing design provides for DIN-Rail or wall mounting
