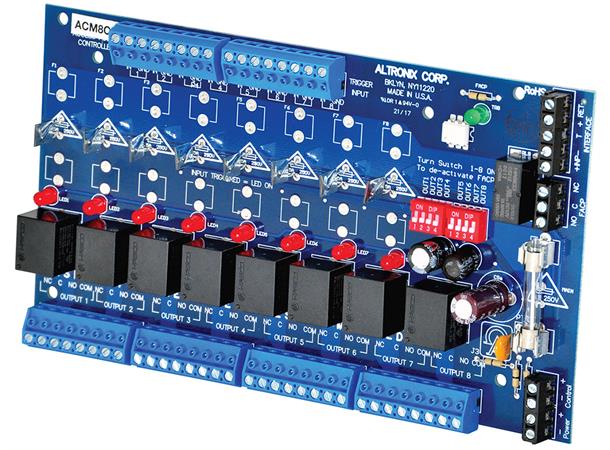

8-kanals utgangskrets 12/24VDC
8-kanals utgangskrets 12/24VDC
PTC-beskyttede, brannoverstyring av utg.
Varenr:
ACM8CB
Beskrivelse
Support
Input
12 to 24 volt AC or DC operation (setting not required), (0.6A @ 12volt, 0.3A @ 24 volt current consumption with all relays energized).
Main fuse is rated at 10A.
Power supply input options:
a) One (1) common power input (board and lock power).
b) Two (2) isolated power inputs (one (1) for board power and one (1) for lock/accessory power).
Eight (8) Access Control System trigger inputs:
a) Eight (8) normally open (NO) inputs.
b) Eight (8) open collector sink inputs.
c) Any combination of the above.
Output
Eight (8) independently controlled Class 2 Rated PTC protected power-limited auto-resettable 2.5A outputs:
a) Eight (8) Fail-Safe and/or Fail-Secure power outputs.
b) Eight (8) dry form "C" 5A rated relay outputs
c) Any combination of the above
Eight (8) auxiliary power outputs (unswitched).
Output ratings:
PTCs are rated 2.5A each.
Note: Total output current is determined by the power supply, not to exceed a maximum of 10A total.
Features
Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs.
Fire Alarm disconnect input options:
a) Normally open (NO) or normally closed (NC) dry contact input.
b) Polarity reversal input from FACP signaling circuit.
FACP output relay (form "C" contact rated @ 1A 28VDC not evaluated by UL).
Removable terminal blocks facilitate ease of installation.
Visual Indicators
Red LEDs indicate outputs are triggered (relays energized).
Green LED indicates FACP disconnect is triggered.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 4 BTU/Hr.
