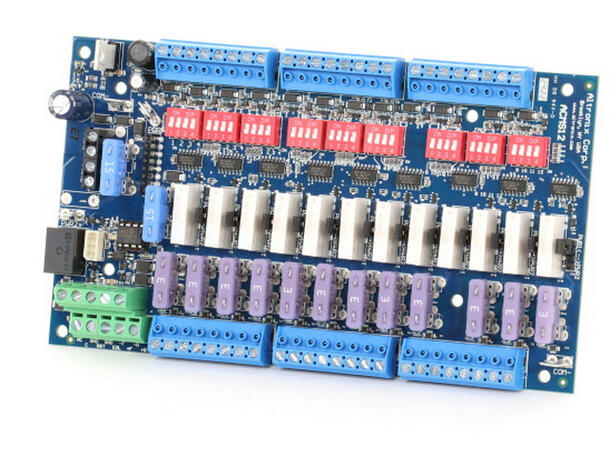

12-kanals utgangskrets 12/24VDC

Sikring-beskyttede,utganger

Varenr: ACMS12
12-kanals utgangskrets 12/24VDC Sikring-beskyttede,utganger
  • Input
      • Two (2) independent low voltage inputs.
        • 1) Input: 12 or 24VDC Altronix Power supply.
        • 2) Input: 12 or 24 VDC Altronix power supply or either 5 or 12 VDC from VR6 Regulator.
      • Voltage Range
        • 20A total input.
        • Main Fuse Rating 15/32A.
      • Current Consumption:
        • 0.6A @ 12V, 0.3A @ 24V with all relays energized.
  • Trigger Inputs
      • Twelve (12) individually controlled trigger inputs:
        • a) Normally open (NO) inputs.
        • b) Normally closed (NC) inputs.
        • c) Open collector sink inputs.
        • d) Wet Input (5VDC - 24VDC) with 10K resistor.
        • e) Any combination of the above.
  • Outputs
    • Fuse protected outputs rated @ 2.5A per output, non power-limited. Total output 20A max.
    • Do not exceed the individual power supply ratings.
    • Twelve (12) selectable independently controlled outputs or twelve (12) indepently controlled Fail-Safe or Fail-Secure power outputs.
    • Any of the twelve (12) fuse protected power outputs are selectable to follow power Input 1 or Input 2.
    • Individual outputs may be set to OFF position for servicing.
  • Output Ratings
    • Fuses are rated 3A/32V each.
    • Total output current is determined by the power supply(ies), not to exceed a maximum of 10A for each input.
  • Fire Alarm Disconnect
    • Supervised: Latching or non-latching, individually selectable for any or all of the twelve (12) outputs.
    • EOL: 10K Resistor.
  • LED Indicators
    • Blue LED indicates FACP disconnect is triggered.
      • Individual voltage LEDs
        • Green: 12VDC
        • Red: 24VDC.
  • Temperature
    • Operating: 0ºC to 49ºC (32ºF to 120ºF).
    • Storage: -20ºC to 70ºC (-4ºF to 158ºF).
    • Relative Humidity 93% +/-5%.
    • BTU/Hr. (approx.): 4 BTU/Hr.
