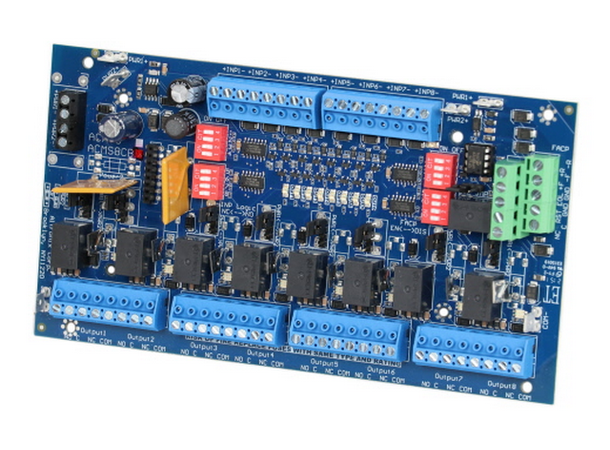

8-kanals utgangskrets 12/24VDC

PTC-beskyttede,utganger

Varenr: ACMS8CB
8-kanals utgangskrets 12/24VDC PTC-beskyttede,utganger
  • Input
      • Two (2) independent low voltage inputs.
        • 1) Input: 12 or 24VDC from eFlow series Altronix Power supply.
        • 2) Input: 12 or 24 VDC from eFlow series Altronix power supply or either 5 or 12 VDC from VR6 Regulator.
      • Voltage Range
        • 16A total input.
        • Main PTC Rating 9A.
      • Current Consumption:
        • 0.6A @ 12V, 0.3A @ 24V with all relays energized.
  • Trigger Inputs
      • Eight (8) individually controlled trigger inputs:
        • a) Normally open (NO) inputs.
        • b) Normally closed (NC) inputs.
        • c) Open collector sink inputs.
        • d) Wet Input (5VDC - 24VDC) with 10K resistor.
        • e) Any combination of the above.
  • Outputs
    • Fuse protected outputs rated @ 2.5A per output, non power-limited. Total output 20A max.
    • Do not exceed the individual power supply ratings.
    • Eight (8) selectable 5VDC - 24VDC independently controlled outputs or eight (8) independently controlled Form “C” relay outputs:
    • a) Fail-Safe and/or Fail-Secure power outputs.
    • b) Form “C” Relays. 28VAC or VDC @ 2.5A Rated.
    • c) Auxiliary power outputs (unswitched).
    • d) Any combination of the above.
    • Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2.
    • Individual outputs may be set to OFF position for servicing.
  • Output Ratings
    • PTCs are rated 2A each.
    • Total output current is determined by the power supply(ies), not to exceed a maximum of 10A for each input.
  • Fire Alarm Disconnect
    • Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs.
      • Fire Alarm disconnect input options:
        • a) Normally open [NO] or normally closed [NC] dry contact input. Polarity reversal input from FACP signaling circuit.
    • FACP output relay [NC] contact or provides 10k resistance with [EOL JMP] intact.
  • LED Indicators
    • Red LEDs indicate outputs are triggered.
    • Blue LED indicates FACP disconnect is triggered.
      • Individual voltage LEDs
        • Green: 12VDC
        • Red: 24VDC.
  • Temperature
    • Operating: 0ºC to 49ºC (32ºF to 120ºF).
    • Storage: -20ºC to 70ºC (-4ºF to 158ºF).
    • Relative Humidity: 93% +/-5%.
    • BTU/Hr. (approx.): 4 BTU/Hr.
