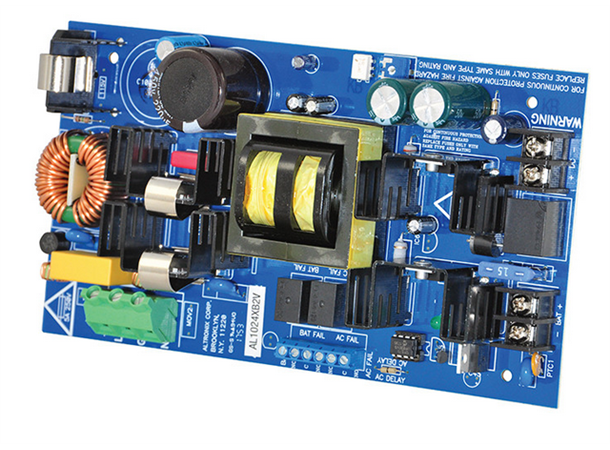

10A 24VDC Power board 230V input
10A 24VDC Power board 230V input
Utgang for lading av backup batteri
Varenr:
AL1024XB2V
Beskrivelse
Support
Input
Nominal 220VAC (working range 198VAC-256VAC), 50/60Hz, 2.5A.
Input fuse rated @ 3.5A/250V.
Output
24VDC output.
10A of continuous supply current for Access Control applications.
8A of continuous supply current for Fire Alarm applications.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Backup
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Supervision
AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery supervision (form "C" contacts).
Battery presence supervision (form "C" contacts).
Visual Indicators
AC input and DC output LED indicators.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 123 BTU/Hr.
System AC input VA requirement: 550VA.
