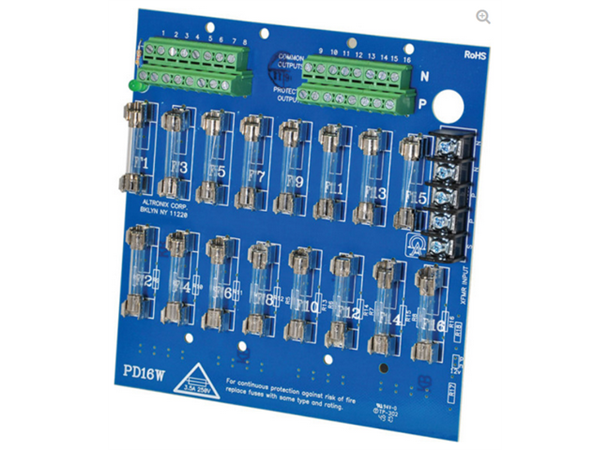

16-kanals distribusjonskrets 12/24VDC

2,5A max for hver utgang

Varenr: PD16W

Input
- 12VDC or 24VDC up to 10A or
- 24VAC or 28VAC, up to 12A.
Outputs
- Sixteen (16) fuse protected outputs.
- 2.5A per output max.
- Total output current should not exceed max current rating of power supply employed.
- Fuses are rated @ 3.5A/250V.
Visual Indicators.
- Power On green LED indicator.
Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
