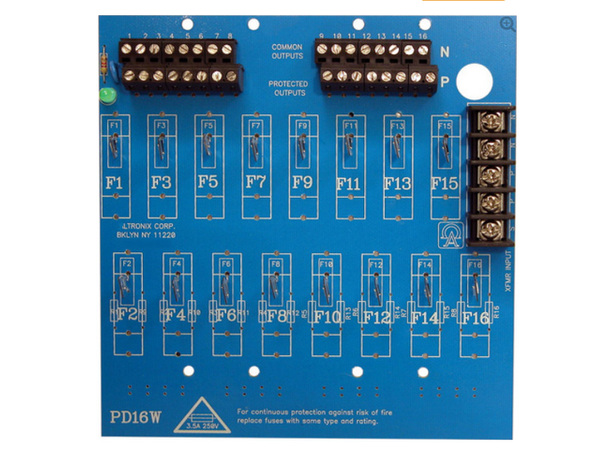

16-kanals distribusjonskrets 12/24VDC

2A max for hver utgang

Varenr: PD16WCB

Input
- 12VDC or 24VDC up to 10A or
- 24VAC or 28VAC, up to 12A.
Output
- Sixteen (16) PTC protected Class 2 Rated power-limited outputs (auto-resettable).
- 2A per output max.
- Total output current should not exceed max current rating of power supply employed.
- PTCs are rated @ 2A/250V.
Features
- Power LED indicator.
Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
