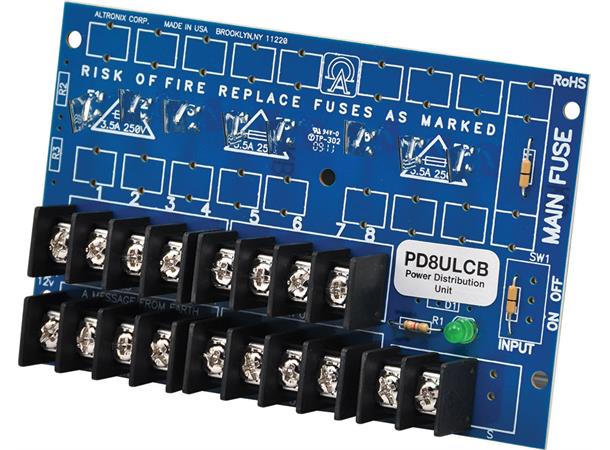

8-kanals distribusjonskrets 12/24VDC

PTC-beskyttede utganger 2A

Varenr: PD8ULCB

Input
- 12VDC or 24VDC, up to 10A or 24VAC or 28VAC, up to 12A.
Outputs
- Eight (8) individually PTC protected outputs @ 2A per output max. current (total output current should not exceed max. current rating of power supply employed).
- PTCs rated @ 2A/250V.
Visual Indicators
- Power on green LED indicator.
Electrical
- Operating temperature: 0 to 49° C (32 to 120° F).
- Storage - 20 to 70° C ( - 4 to 158° F).
- Relative Humidity 85% +/- 5%.
