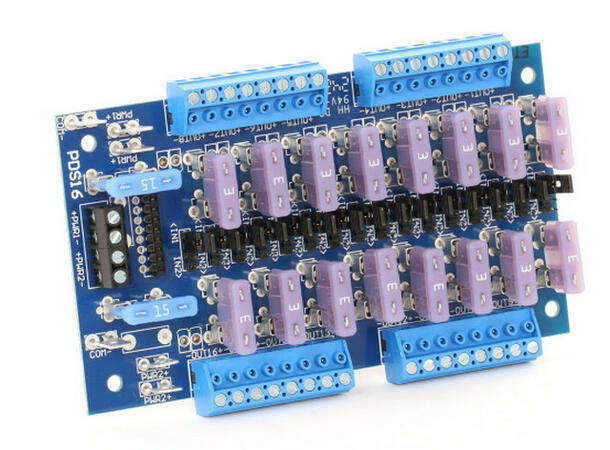

16 FUSED/2-INPUT PWR DIST MOD

Varenr: PDS16
16 FUSED/2-INPUT PWR DIST MOD
  • Input
    • Voltage Range: 5VDC to 24VDC, up to 10A each or 16VAC to 28VAC, 60Hz, up to 10A each, 20A total input.
  • Main Fuse Rating
    • 15/32A.
  • Outputs
    • Fuse protected outputs rated @ 3A per output, non power-limited. Total output 20A max.
    • Do not exceed the individual power supply ratings.
    • Any of the sixteen (16) fuse/PTC protected power outputs are selectable to follow power Input 1 or Input 2.
    • Individual outputs may be set to OFF position for servicing.
    • Fuses are rated 3A/32V each.
    • Total output current is determined by the power supply(ies), not to exceed a maximum of 10A for each input.
  • LED Indicators
    • DC Output: Individual voltage LEDs indicate 12VDC (Green) or 24VDC (Red and Green).
  • Features
    • Multiple units may be daisy-chained to accommodate larger systems.
  • Temperature
    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
