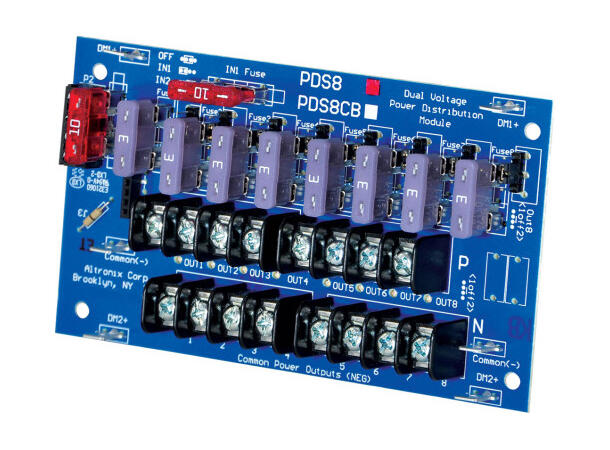

8 FUSED/2-INPUT PWR DIST MOD

Varenr: PDS8
8 FUSED/2-INPUT PWR DIST MOD
  • Power Inputs
    • Input 1 and Input 2 Voltage range: 5VDC to 24VDC up to 10A each or 16VAC to 28VAC up to 14A each.
  • Outputs
    • Any of the eight (8) fuse protected power outputs are selectable to follow power input 1 or input 2.
    • Individual outputs may be set to OFF position for servicing.
      • Output ratings:
        • PDS8 - fuse protected outputs rated @ 3A (total output current should not exceed max current rating of power supply employed).
    • Surge suppression.
  • Fuse Ratings
    • Output fuses rated @ 3A each.
    • Main input fuses rated @ 10A each.
  • LED Indicators
    • Individual voltage LEDs indicate 12VDC (Green) or 24VDC (Red and Green).
  • Temperature
    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
