1Ch Digital Video Receiver Contact Clos.

1 Fiber, Multiemode, 10 Bit

Varenr: FVR10C1M1
11448

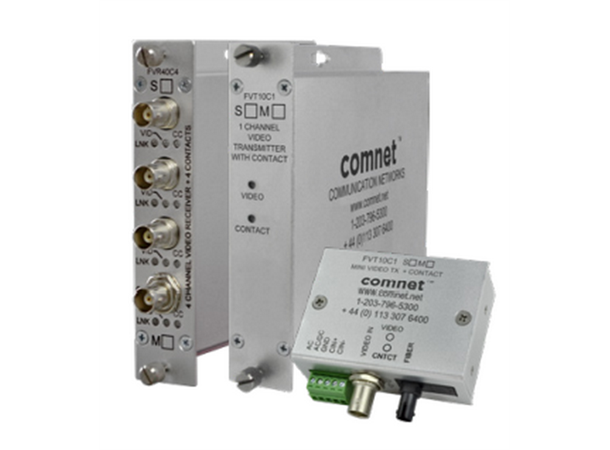

The ComNet series video transmitters and receivers support the transmission of one, two, or four independent short-haul quality 10-bit digital video signals and one, two, or four contact closures in the direction of the video over multimode or single mode optical fibers. This module is universally compatible with major CCTV camera manufacturers. The receivers are compatible with the FVT10C1(M,S)1[/M] series or FVT1(M,S)1/M* single channel transmitters. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.

FEATURES

› 10-bit Digital Video, Contact Closure Transmission: Receives one, two, or four real-time color video signals over one, two, or four optical fibers

› Supports one, two or four Contact Closures in the direction of video, ideal for tamper switch, etc.

› Exceptionally low video distortion with zero performance variation vs. optical path

› Distances up to 4 km (2.5 mi) over Multimode Fiber

› Distances up to 54 km (33.6 mi) over Single Mode Fiber

› Exceeds All Requirements for EIA RS-250C Short-Haul Transmission Specifications

› Compatible with NTSC, PAL, or SECAM Video Standards

› NTCIP compatible

› Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.

› Voltage transient protection on all power and signal input/ output lines provides protection from power surges and other voltage transient events.

› LED status indicators confirm operating status

› Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.

› Automatic resettable fuses on all power lines

› Hot-Swappable Modules

› 12 VDC or 24 VAC powered FVT10C1/M mini unit can be powered directly from camera

› ComFit units are Interchangeable between stand-alone or rack mount use, or can be DIN-rail mounted with optional DINBKT1 or DINBKT4 mounting kit.

› Lifetime Warranty



Produktinformasjon

Produsent Comnet
Type Standalone
