The NetWave® NWK(1,2)[IC] Industrial Grade high performance point-to-point
wireless radio kit is ideal for high capacity and scalable deployments where channel
overlapping and interference typically cause our discounted competitors radios
to become unstable. The wide range of channel spectrum widths available on the
NWK(1,2)[IC] series of radios gives you the option of narrowing channel bandwidths as
your network grows which will increase the number of non-overlapping channels and
improve stability.

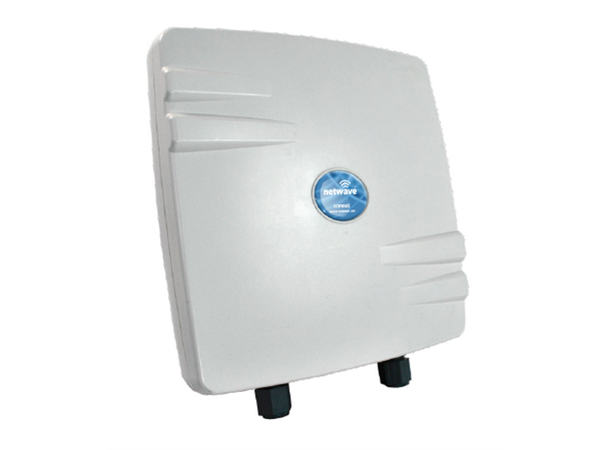

The NWK(1,2)[IC] comes standard with an integrated antenna and an IP67 rated
impact resistant polycarbonate enclosure that is designed to survive the most extreme
conditions. The NWK1 is FCC certified for use in the United States. The NWK2 is ETSI,
DFS and TPC certified for use in the European Union. The NWK1IC is certified for use in
Canada
FEATURES
› Narrow Channel Spectrum Widths for large and noisy
deployments
› 5, 10, 20 and 40 Mhz Channel Bandwidth Support
› Up to 240 Mbps Throughput
› 802.11a/n Compliant
› Distances up to 2 mi (FCC, IC) or 2km (ETSI)
› IEEE802.3at PoE Compliant PD on port 1
› IEEE802.3af power source (PSE) available on port 2
› Environmentally Hardened -40º to +75ºC
› Meets class IP67 dust and water immersion protection
standards
› Secure transmission: WPA2 – AES or TKIP encryption
› ComNet Antenna alignment feature eases installation
and setup
› RF Spectrum Survey ToolsAntenna Alignment Tools
› LED array displays unit operational status along with
received signal strength
› Scalable - Narrow Channel 5 and 10 MHz Bandwidths will
allow you to expand your WLAN without losing reliability by
increasing the total number of non-overlapping channels
› Firmware Upgrades Included Free for the life of the product
› Installation and Configuration Trainings Available
› Radio Internal Components covered by Lifetime Warranty.
› Enclosures covered by Three Year Warranty.
APPLICATIONS
› High-Bandwidth Video Surveillance
› Multipurpose Networks
› ITS Applications
