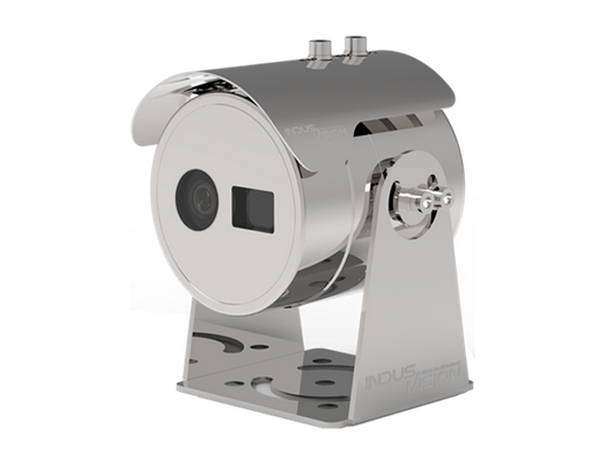

• ExCertifications : IECEx / ATEX / KCs / NEPSI / JPEx / TS
• Ex Certifications (Gas) : Ex d IIC T6 Gb, Zone 1 & 2
• Ex Certifications (Dust) : Ex tb IIIC T85°C Db, Zone 21 & 22
• Electropolished AISI 316L Stainless Steel / Lost-wax casting mold structure without welds
• Silicon Glass / Tempered Glass
• Ingress Protection Rating : IP66
• Operating Temperature : -25°C ~ +55°C
• Ambient Temperature : -40°C ~ +60°C
• Cable Entry : 1 x 1/2“ NPT
• 3.3mm Fixed Lens
• Thermal : 256X192 / Optical : 1920X1080 / 160(H) x 120(V)-Option
• Thermal Camera SDK, RTSP, ONVIF / Optical RTP, RTSP, ONVIF
• Pixel Pitch : 12?
• Support Modubus Protocol
• Three-phase Imbalance detection
• Temperature Range : Accuracy : -20°C ~ 150°C, 20°C ~ 550°C
• Support Point, Line, Plane, Polygon ROI
• PoE Class 3 (IEEE 802.3af) support / DC 12V 3A
