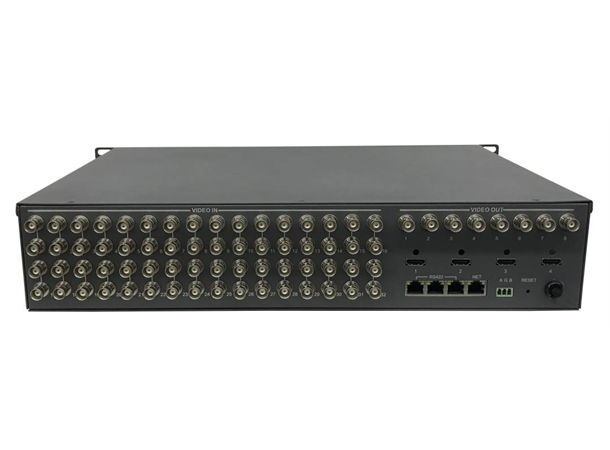

HD analog matrix, 32ch x 8 video output

8 x BNC 4x HDMI output, 19" rack mount

Varenr: PM50MA32L4H8C
HD analog matrix, 32ch x 8 video output 8 x BNC 4x HDMI output, 19" rack mount

PE50MA32-8 HD analog matrix switcher support 32ch analog, HD TVI/CVI/AHD input,8ch BNC & 4ch HDMI output or 8ch HDMI output. Full crossing video exchanging. Pleco D, P, C protocol available.

Communication Modeserial (RS-485),TCP/IP RS422
Display Modenumeral duct
Baud Rate9600 bits/s
Connection ModeSTP
Video Isolation degree-45dB
Channel Bandwidth10 MHz
Video S/N65 dB
Differential Phase=1.1°
Differential Gain=0.6%
Insertion Gain=0.1db
Synchronous Nonlinear Distortion1%
Brightness Nonlinear Distortion1.50%
Inter-modulation Distortion0.50%
Amplitude Frequency Characteristic1.5db
Waveform Distortion in a Short Time3.50%
Cluster Frequency Delay Characteristics6ns
Brightness/Color Time Delay Offset2.5ns
Brightness/Color Time Delay Gain8%
Video Input Signal1Vp-p /75O
Video Output Signal1Vp-p /75O
Audio Input Signal1Vp-p
Audio Output Signal1Vp-p
The Maximum Inputs (can be controlled)64
The Maximum Receiver/drivers (can be controlled)255
The Maximum allocated keyboard16
Memory Retention in Power-off10 years
Operable Keyboards numbermain keyboard with 35 keys and, sub keyboard with 23 keys
temperature-10?~ +35?
Working VoltageAC 220V ±10% 50/60 Hz for matrix, DC 9V ±10% for sub keyboard.
Matrix Weight5.8kg
Matrix Power30 W
Matrix Size430(W)×90(H)×313(L)mm
Installation Modedesktop or 19” standard rack
