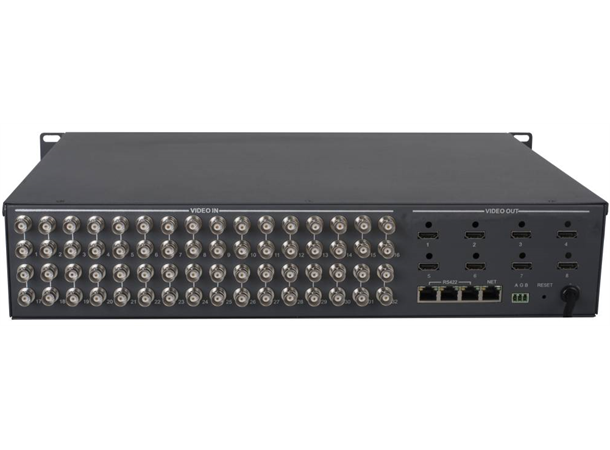

PE50MA32-8 HD analog matrix switcher support 32ch analog, HD TVI/CVI/AHD input,8ch BNC & 4ch HDMI output or 8ch HDMI output. Full crossing video exchanging. Pleco D, P, C protocol available.
| Communication Mode | serial (RS-485),TCP/IP RS422 |
| Display Mode | numeral duct |
| Baud Rate | 9600 bits/s |
| Connection Mode | STP |
| Video Isolation degree | -45dB |
| Channel Bandwidth | 10 MHz |
| Video S/N | 65 dB |
| Differential Phase | =1.1° |
| Differential Gain | =0.6% |
| Insertion Gain | =0.1db |
| Synchronous Nonlinear Distortion | 1% |
| Brightness Nonlinear Distortion | 1.50% |
| Inter-modulation Distortion | 0.50% |
| Amplitude Frequency Characteristic | 1.5db |
| Waveform Distortion in a Short Time | 3.50% |
| Cluster Frequency Delay Characteristics | 6ns |
| Brightness/Color Time Delay Offset | 2.5ns |
| Brightness/Color Time Delay Gain | 8% |
| Video Input Signal | 1Vp-p /75O |
| Video Output Signal | 1Vp-p /75O |
| Audio Input Signal | 1Vp-p |
| Audio Output Signal | 1Vp-p |
| The Maximum Inputs (can be controlled) | 64 |
| The Maximum Receiver/drivers (can be controlled) | 255 |
| The Maximum allocated keyboard | 16 |
| Memory Retention in Power-off | 10 years |
| Operable Keyboards number | main keyboard with 35 keys and, sub keyboard with 23 keys |
| temperature | -10?~ +35? |
| Working Voltage | AC 220V ±10% 50/60 Hz for matrix, DC 9V ±10% for sub keyboard. |
| Matrix Weight | 5.8kg |
| Matrix Power | 30 W |
| Matrix Size | 430(W)×90(H)×313(L)mm |
| Installation Mode | desktop or 19” standard rack |
