DESCRIPTION

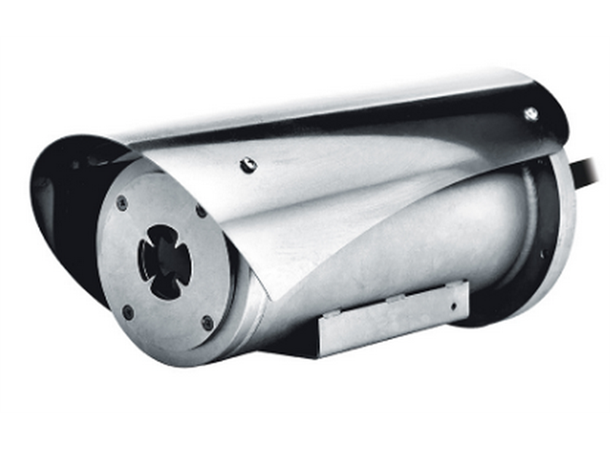

The explosion-proof camera MAXIMUS MVXT is perfect for efficient and preventive video surveillance and control of processes in hazardous environments where the atmosphere is potentially explosive due to the presence of inflammable gases or dust, typical of the Oil&Gas, marine or industrial sectors. IP-based cameras are also enhanced with radiometric functions that allow temperature detection based on the 4 central pixels of the image. Versions are available on request with advanced radiometry, capable of measuring the temperature of a specific object in any point of the image by defining a specific area.

KEY FEATURES

Certifications for use in Zones 1 and 2, IIC T5 and T6 Group (Gas) and in Zones 21 and 22, IIIC T100°C and T85°C Group (Dust) Marine Certification: Lloyd's Register Marine Type Approval AISI 316L stainless steel construction External shot peened and electro-polished surfaces Analogue or IP (ONVIF Profil Q, Profile S, Profile T, ONVIF Thermal Service) versions Thermal cameras: Sensor: Uncooled VOx microbolometer Lenses: 9mm, 13mm, 19mm, 25mm, 35mm, 50mm, 60mmResolution: 336x256 or 640x512 1 alarm input and 1 relay output 4m (13ft) / 10m (32.8ft) preinstalled armoured multipolar cable with cable gland or, alternatively, with 4m (13ft) / 10m (32.8ft) cable tail (for installation with conduit, conduit sealing fitting and conduit not included) Power supply: 12-24Vdc/24Vac IP66/IP67/IP68/IP69 Radiometry functions available only for IP versions
